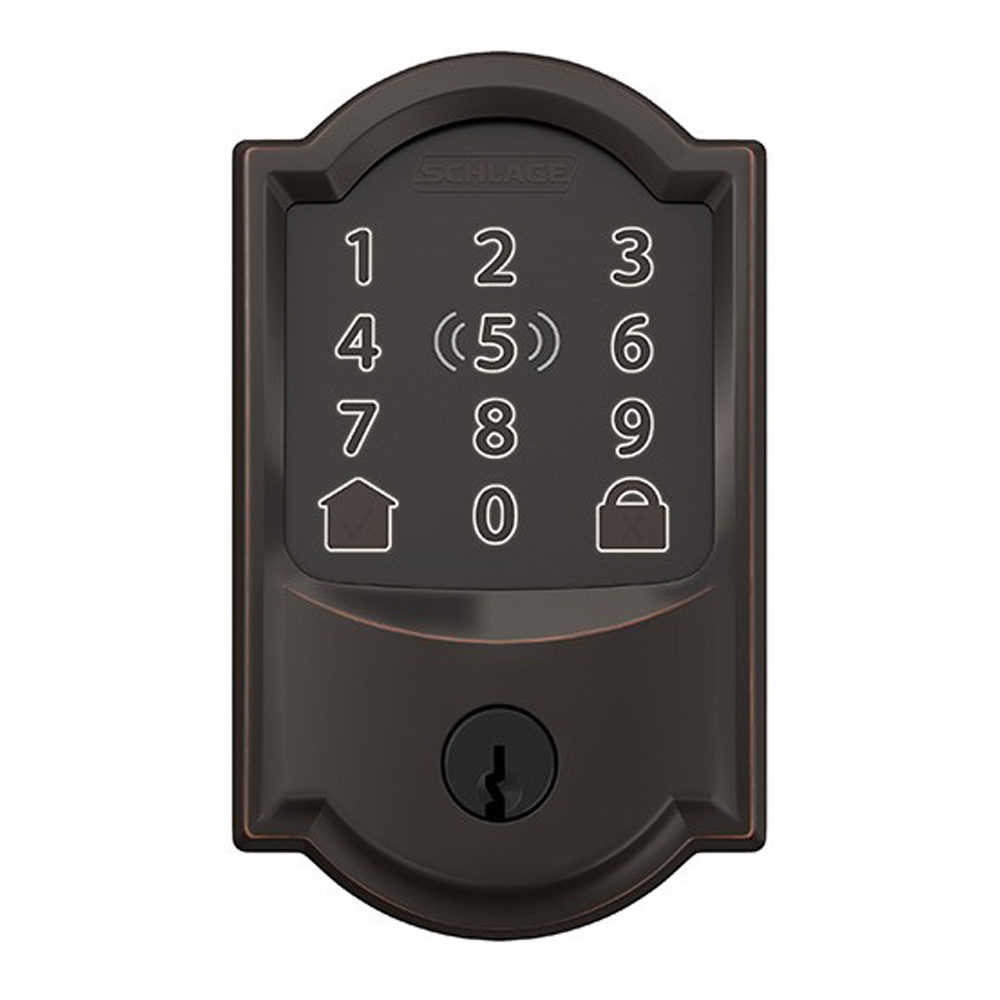

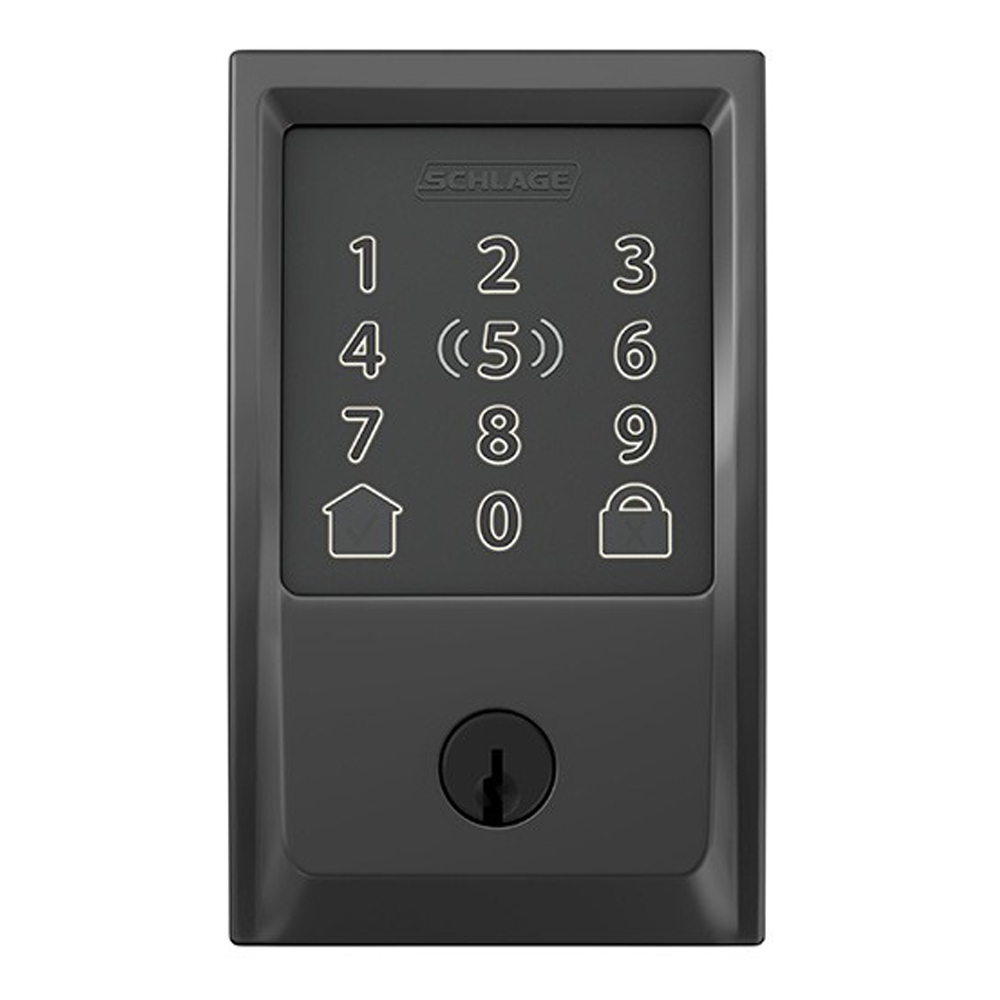

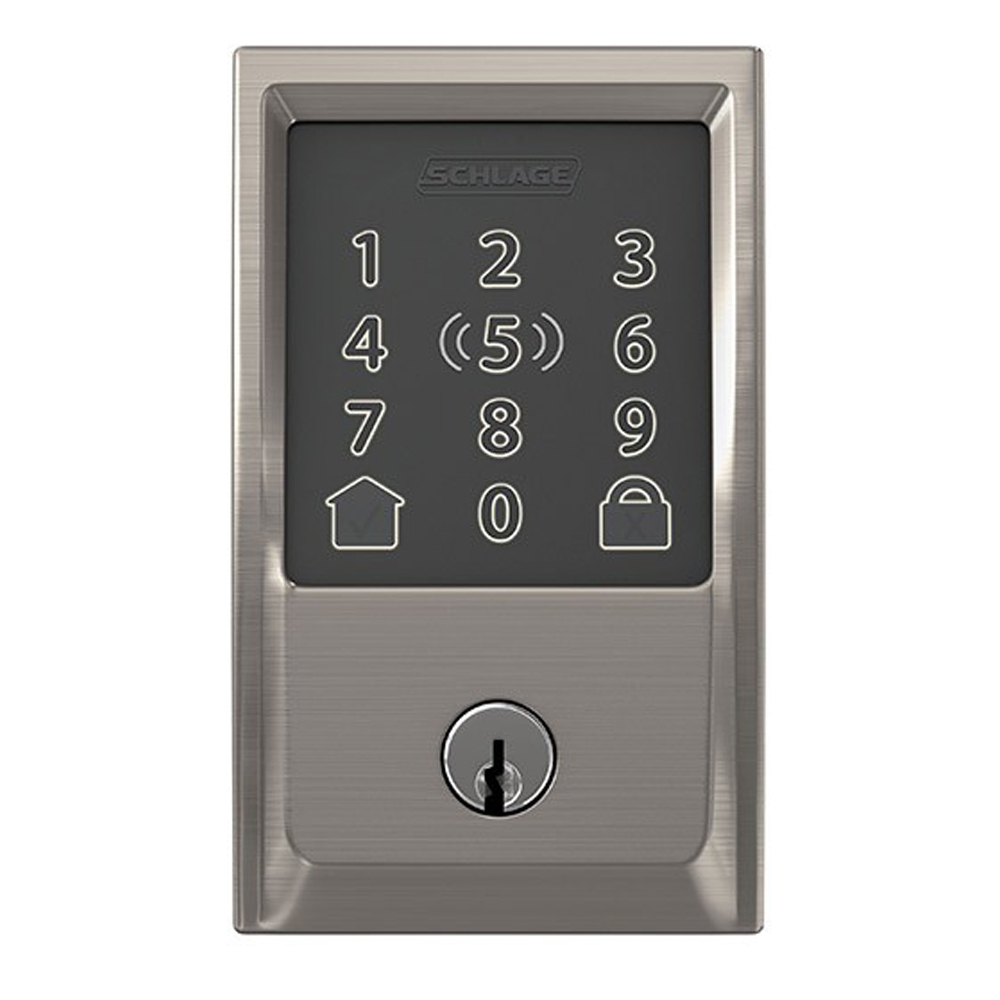

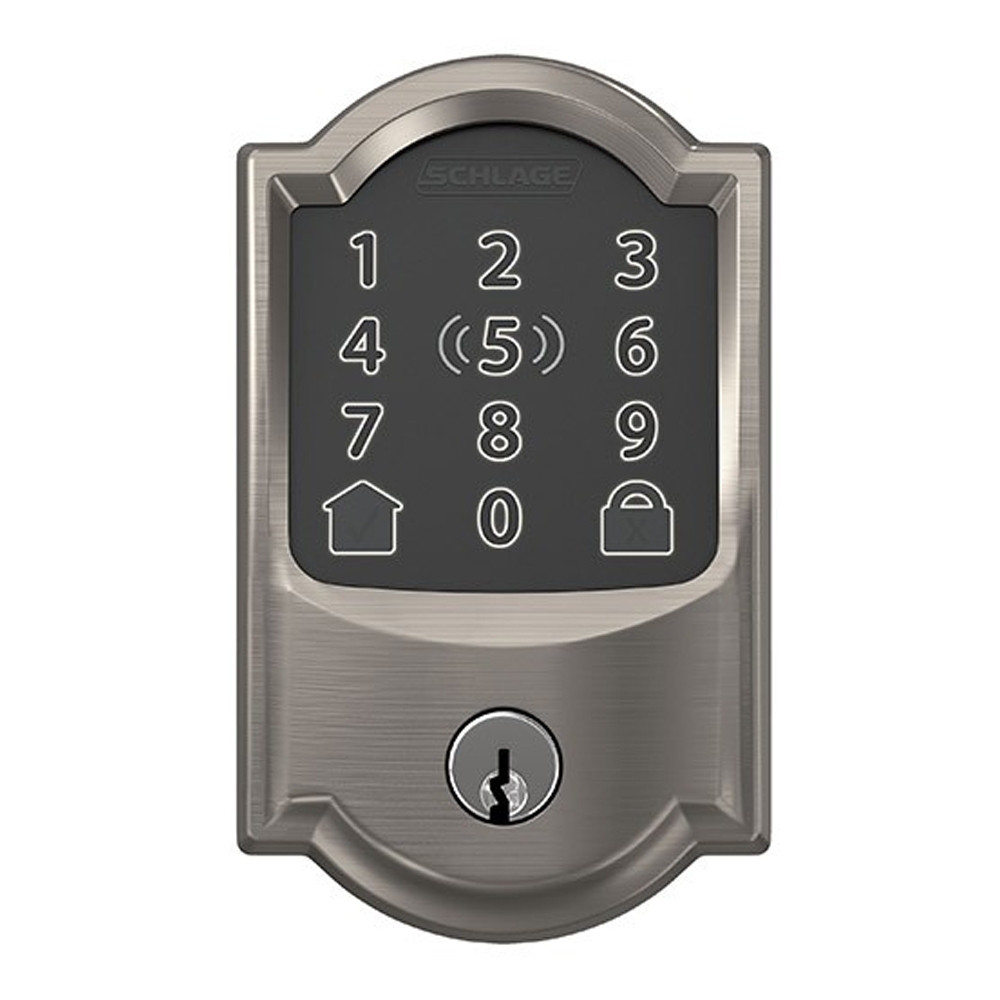

Schlage Encode™

• ADA Compliant: Yes
• Applications: Residential doors
• Backset: Universal Backset Adjusts to 2-3/8" (60mm) or 2-3/4" (70mm)
• Battery: Uses 4 AA alkaline batteries

Certifications:

• Commercial Standard Certification:ANSI/BHMA A156.36 Commercial Grade 1
• Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish
• Door thickness range: 1-3/8 in (35 mm) to 1-3/4 in (45 mm)
• Exterior Dimensions: 3" x 5" x 0.9"
• Interior Dimensions: 3" x 5.5" x 2.2"
• Keying: 5-pin tumbler, C Keyway, 1 key included
• Operating Temperatures: Outside lock body: -31F to 150.8F, Inside lock body: 14F to 122F
• WiFi compatibility: requires 2.4GHz WiFi network
• Warranty: WARRANTY: Limited lifetime mechanical and finish warranty and 3-year electronics warranty
• Codes: Pre-set, unique 6-digit programming code, two pre-set unique 4-digit access codes, 100 code capacity

• ANYWHERE ACCESS: With built-in WiFi compatibility, you can easily and securely connect your Schlage Encode Plus lock to your home WiFi network to control and monitor your home from anywhere with the Schlage Home app
• PEACE OF MIND: Lock and unlock from anywhere, mange up to 100 access codes, view lock history, receive customizable notifications and easily manage multiple locks at once - all when paired to the Schlage Home app and connected to a secure WiFi network
• TAP TO UNLOCK: Works with AppleHomeKitand Apple home keys; with home keys you can simply tap to lock or unlock using your iPhone or Apple Watch for easy and secure access to yourhome
• VOICE CONTROL: Works with Amazon Alexa and Google Assistant for optional, hands-free convenience when paired with the Schlage Home app and a voice enabled device
• ADVANCED SECURITY: Secure, encrypted connection; built-in, customizable alarm for door movement and forced entry attempts; fingerprint-resistant touchscreen; certified highest residential Security, Durability and Finish rating by BHMA industry experts
• EASY INSTALL: Install in minutes with just a screwdriver, no hardwiring required; Snap n Stay design helps keep the lock on the door so both hands are free; fits standard doors with 1-3/8 in. to 1-3/4 in. door thickness and 2-3/8 in. or 2-3/4 in. backset
• COME AND GO WITH EASE: Auto-lock conveniently relocks the door for you and has a variety of time delay options to choose from or can be turned off completely; One-touch locking from the exterior touchscreen makes locking up when leaving easy
• BATTERY-OPERATED: Uses four AA batteries (included); up to six months of battery life with typical use; low-battery indicator on lock touchscreen and in Schlage Home app provides advance notice; one (1) physical backup key included
• Certified Commercial Grade 3
• Graded Best in Residential Security, Durability, and Finish
• Learn more about grading.
